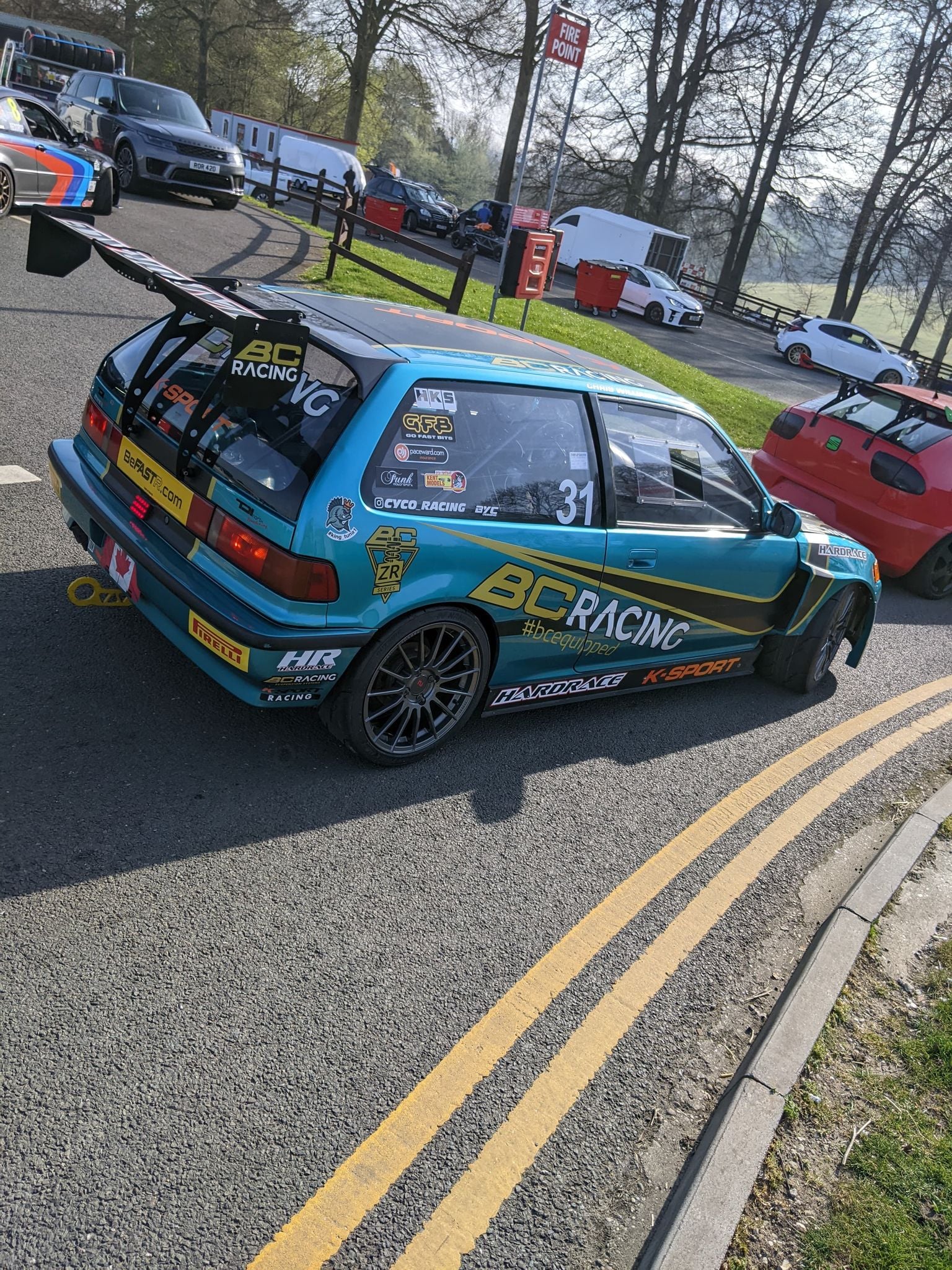

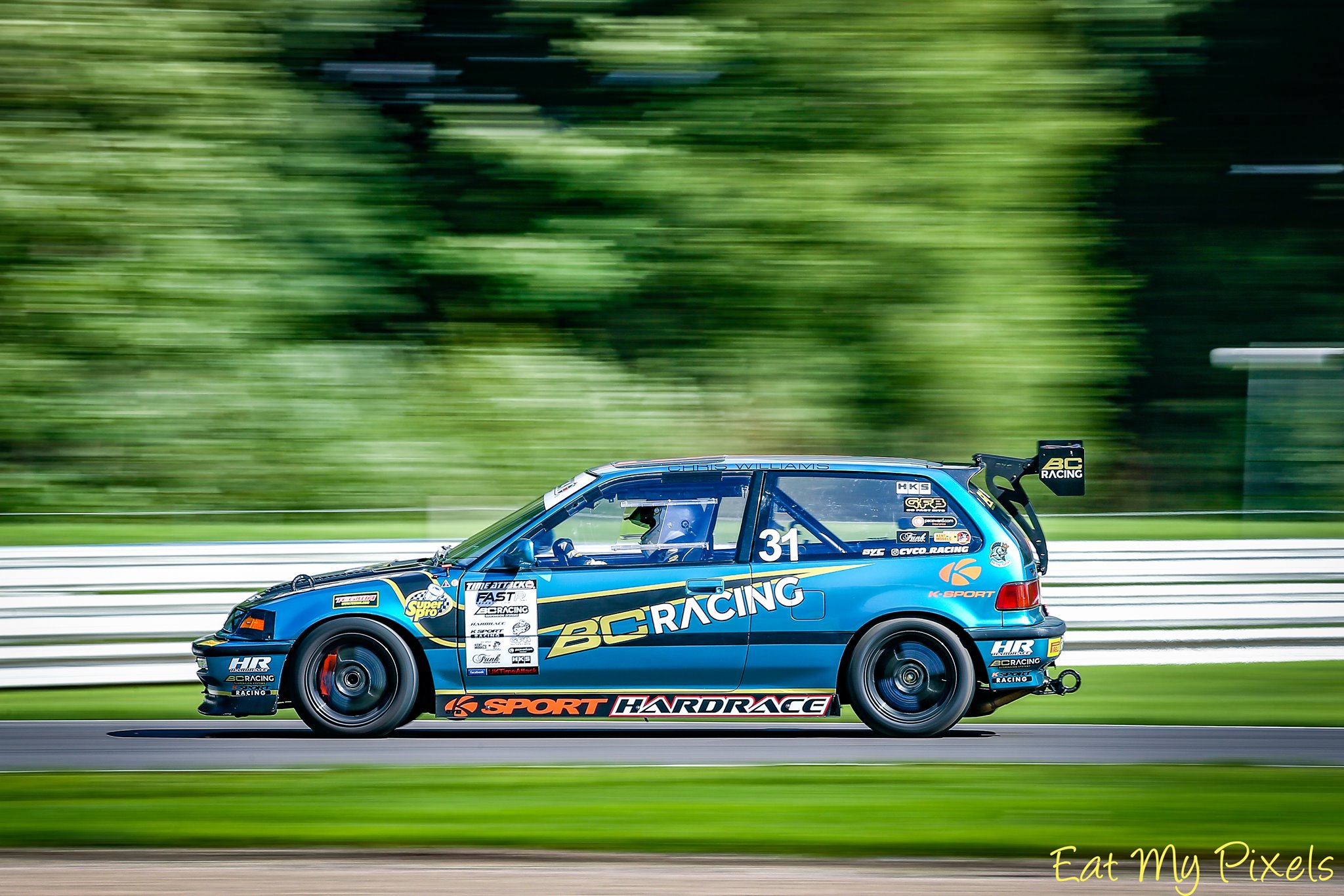

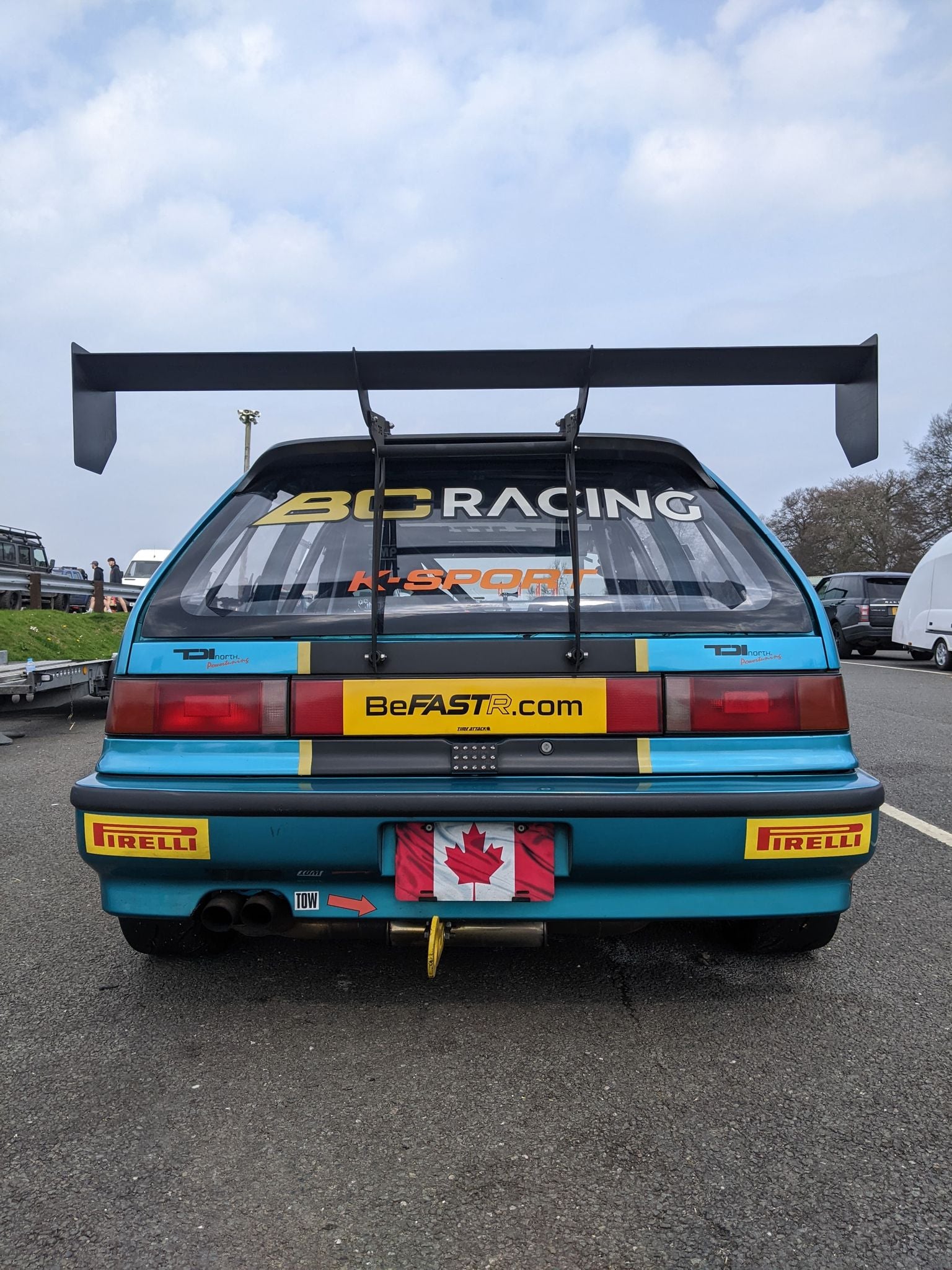

#31 - HONDA CIVIC EF
The Green machine is back and joins Team BC Racing
for another season of Time Attack madness.
After a season out to refresh & rebuild his Civic EF,
Chris Williams will be returning to join us in the club 2wd
Time Attack Championship 2022 season!
ZR Series
Honda Civic CR-X (Rear Fork) (88-91) 16/12KG.mm
ZR Series bring a 3-way adjustable track ready coilover
system to racers from novice to pro for a price not seen
before in the performance suspension market. Each ZR
Series Coilover system offers independent low speed and
high speed compression adjustment and separate rebound
adjustment. They also offer full height adjustability
independent of piston travel and spring preload.
Find out more about ZR Series Coilovers HERE
Direct Link to Chris's ZR Series Coilovers HERE
ENGINE
Stock sleeve K20 bored to 86.5mm
Wiesco 11.7:1 pistons
Skunk2 rods
Brand new oem honda crank
ACL Race bearings
Brand new stock K20a2 oil pump
Toda timing chain
Supertech 95lb. valve springs and retainers
02-04 K24a2 OEM Cams
Skunk2 Pro Series intake manifold with Skunk2 70mm tb
Custom JBDR exhaust manifold and 3” stainless exhaust
Clockwise motion oil pan baffle
K-tuned fuel rail
Aeromotive A1000 Fuel pressure regulator
1000cc Deutchworks injectors
CSF K-swap radiator with an 16- fittings
Davies Craig EWP150 electric waterpump
Rotrex C38-91 w/ 105mm pulley
Turbosmart 50mm BOV
Mishimoto Intercooler
Holley Blue fuel pump as lift pump to Bosch 044 main pump in swirl pot
Hondata K-pro V4
K-Tuned upper and lower rad hose housing
K-Tuned adjustable EP3 pulley kit
TRANSMISSION
Exedy lightweight flywheel
Comp Clutch stage 4 clutch
Stock USDM RSX Type-S 1st-6th
OEM Honda 4.7fd
Kaaz 1.5 way Super-Q LSD
JBDR Hydraulic clutch pedal conversion
SUSPENSION & BRAKES
BC Racing ZR series coilovers – 16k front springs, 12k rear springs
Hardrace upper control arms
Hardrace front lower control arms (spherical bearing)
Hardrace extended lower ball joints
Hardrace tie rod ends
Hardrace rear lower control arms (spherical bearing)
Hardrace rear toe links (spherical bearing)
Hardrace rear camber arms (spherical bearing)
Hardrace rear trailing arm spherical bearings
K-Sport 286mm 6-pot front brake kit (Pagid RST1 pads)
CRX Rear disc swap with oem calipers (Ferodo DS2500 pads)
Castrol SRF brake fluid
K-Tuned traction bar
WHEELS
Dry Wheel Setup
2Forge ZF1 wheels – 17 x 9 ET20 front
2Forge ZF1 wheels – 17 x 7.5 ET38 rear
Nankang AR1 front: 255/40/17 rear: 205/40/17
Wet Wheel Setup
Volk TE37 15x6.5 ET38 all around
Uniroyal Rainsport 5 front and rear: 205/50/15
EXTERIOR
Vis Racing Carbon Bonnet/hood
Motoforza fibreglass wide wings/fenders and bumper
BYC Designs side skirts
BYC Designs bonnet/hood vents
BYC Designs sunroof blank
BYC Designs fender/wing braces
BYC Designs rear wing
BYC Designs front splitter mounts
BYC Designs side mirrors (coming soon!)
Plastics4performance Perspex windows
INTERIOR
Ecumaster PMU-16
OMP Champ bucket seat
Sabelt 6-point harness
OMP Sport plumbed in extinguisher
Hybrid Racing no cut shifter & shift cables
AiM MXS Strada dash with GPS and wideband
Summit Raptor wireless steering wheel controls
Cartek battery isolator
Momo Steering wheel with NRG quick release
CRX Dash swap
Custom JBDR roll-cage
Wink 5-panel rear view mirror
