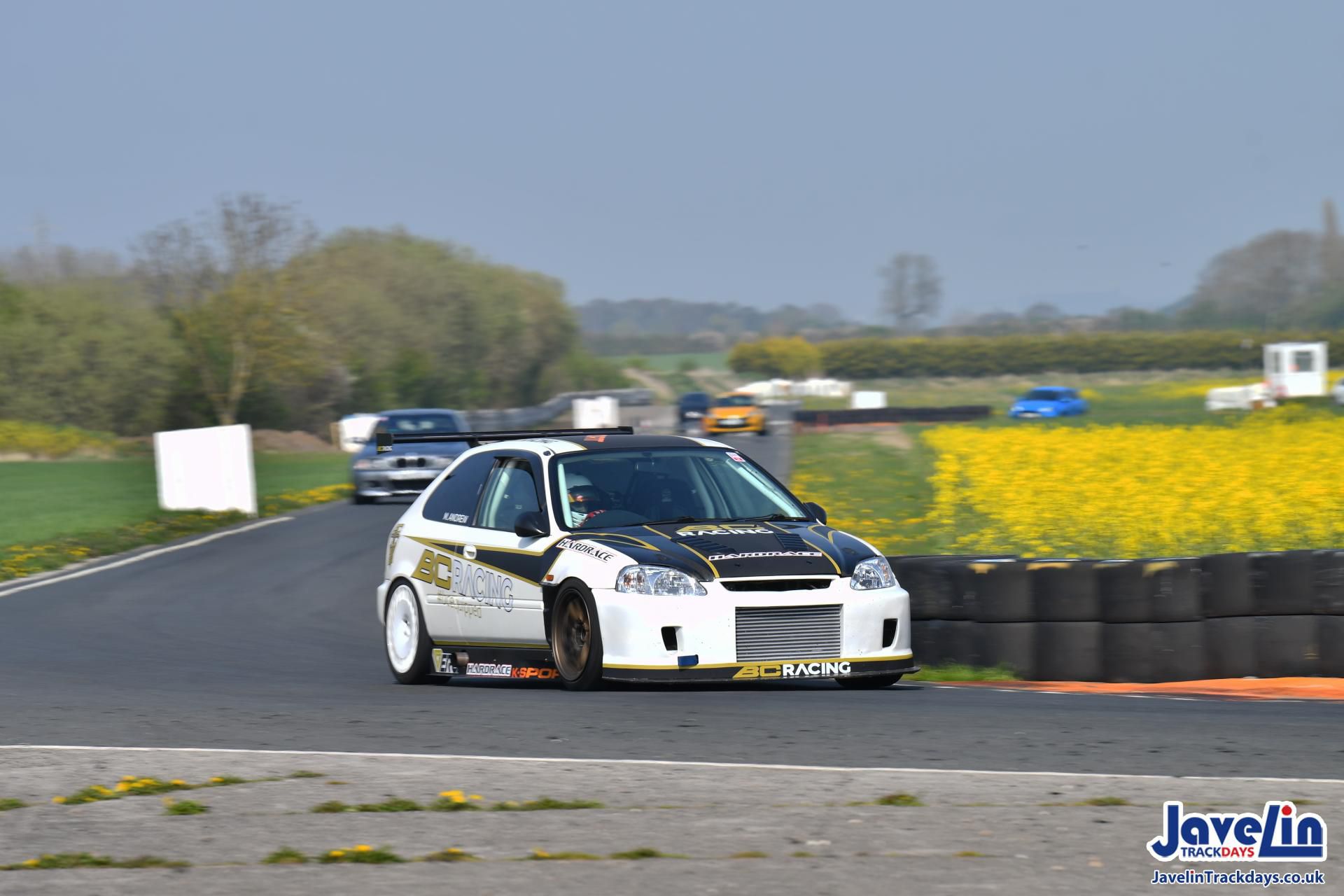

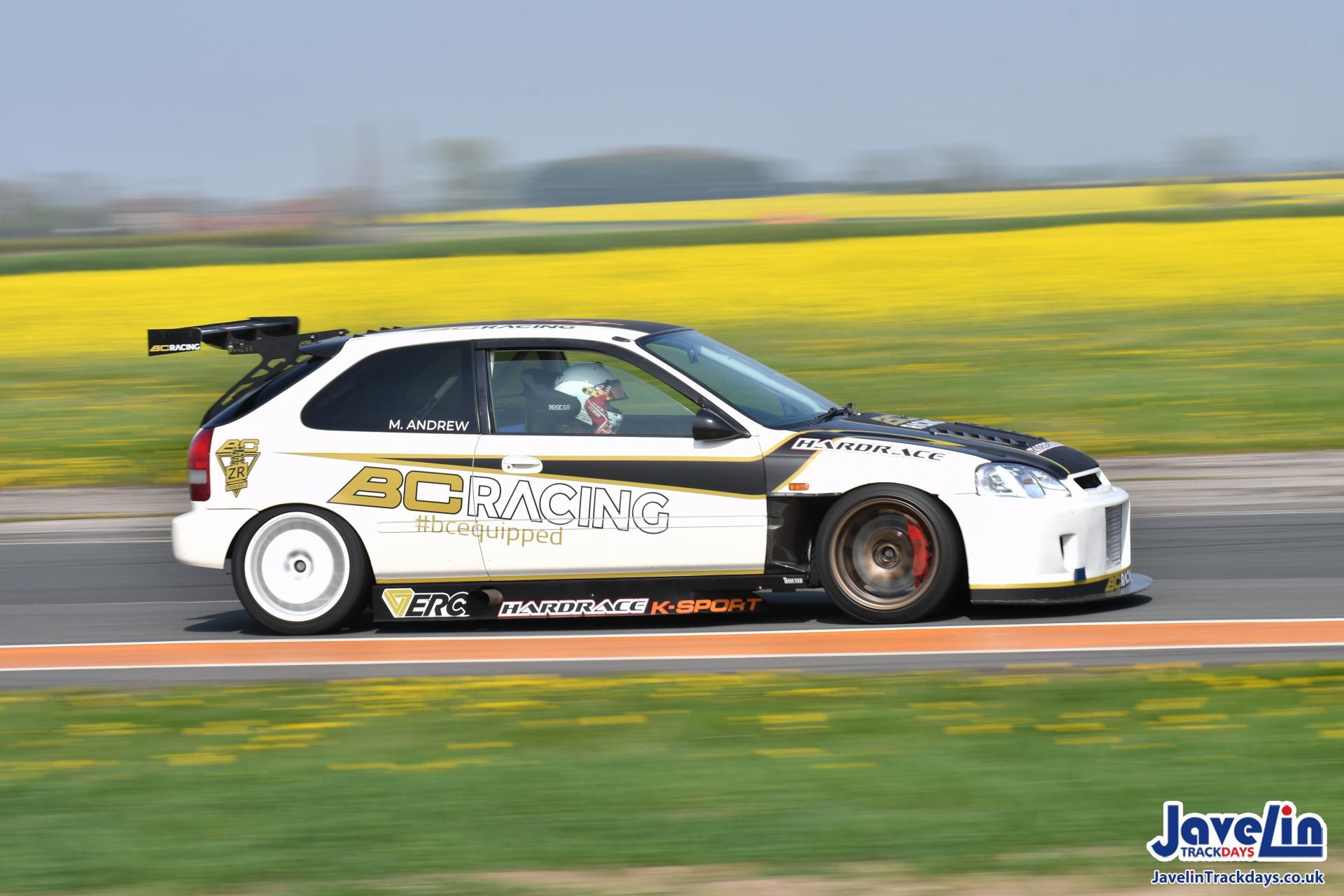

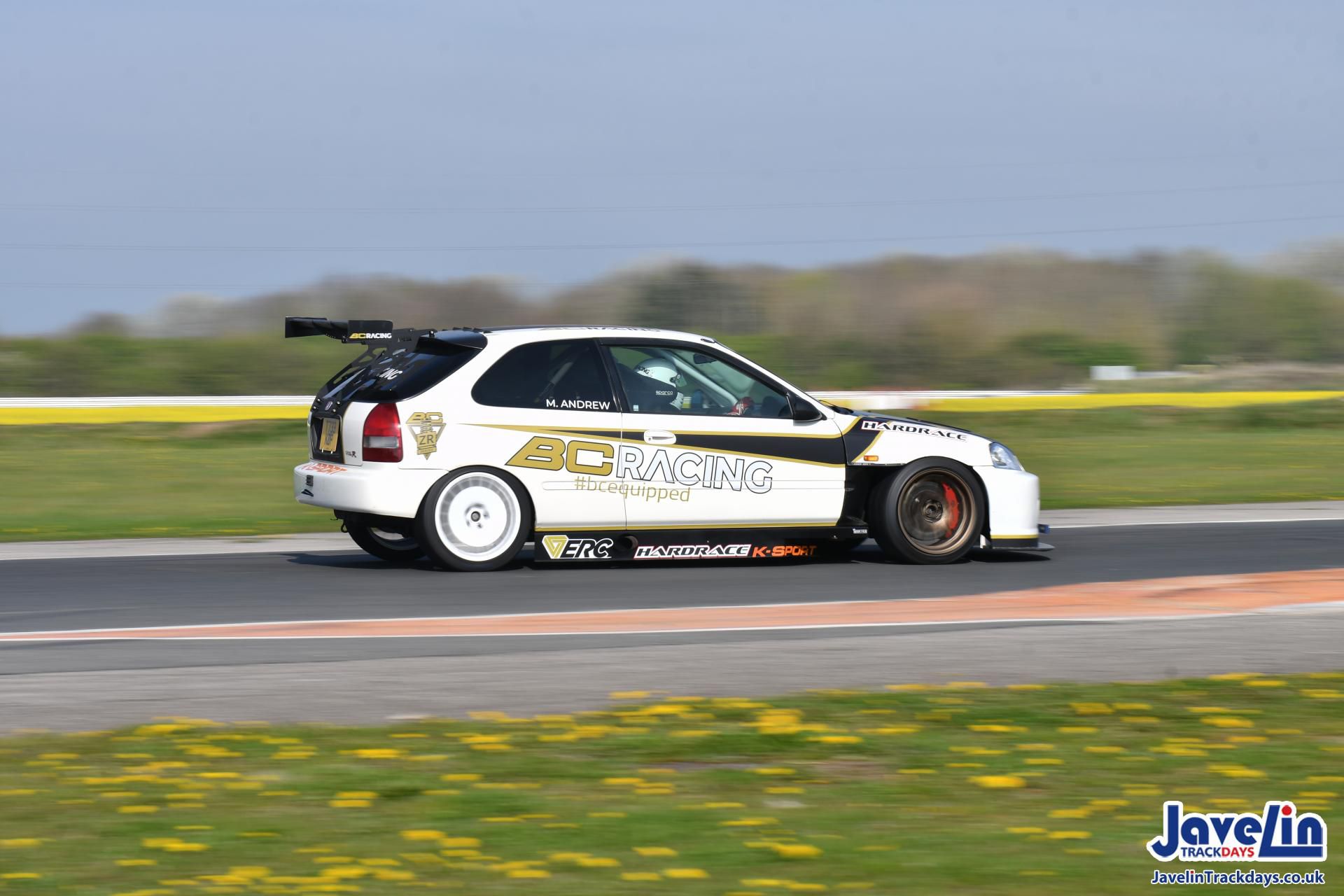

   #86 - HONDA CIVIC EK9



     After a 4 year break away from Time Attack, Michael

      Andrew returns to the circuit, representing Team BC

      Racing in the 2022 season.



      Back in 2018, Michael made his debut in club 2WD,

      only to find himself not losing a single round, and

      smashing 6 lap records in the process.



      We're excited to see Michaels EK9 Back on track in 2022.

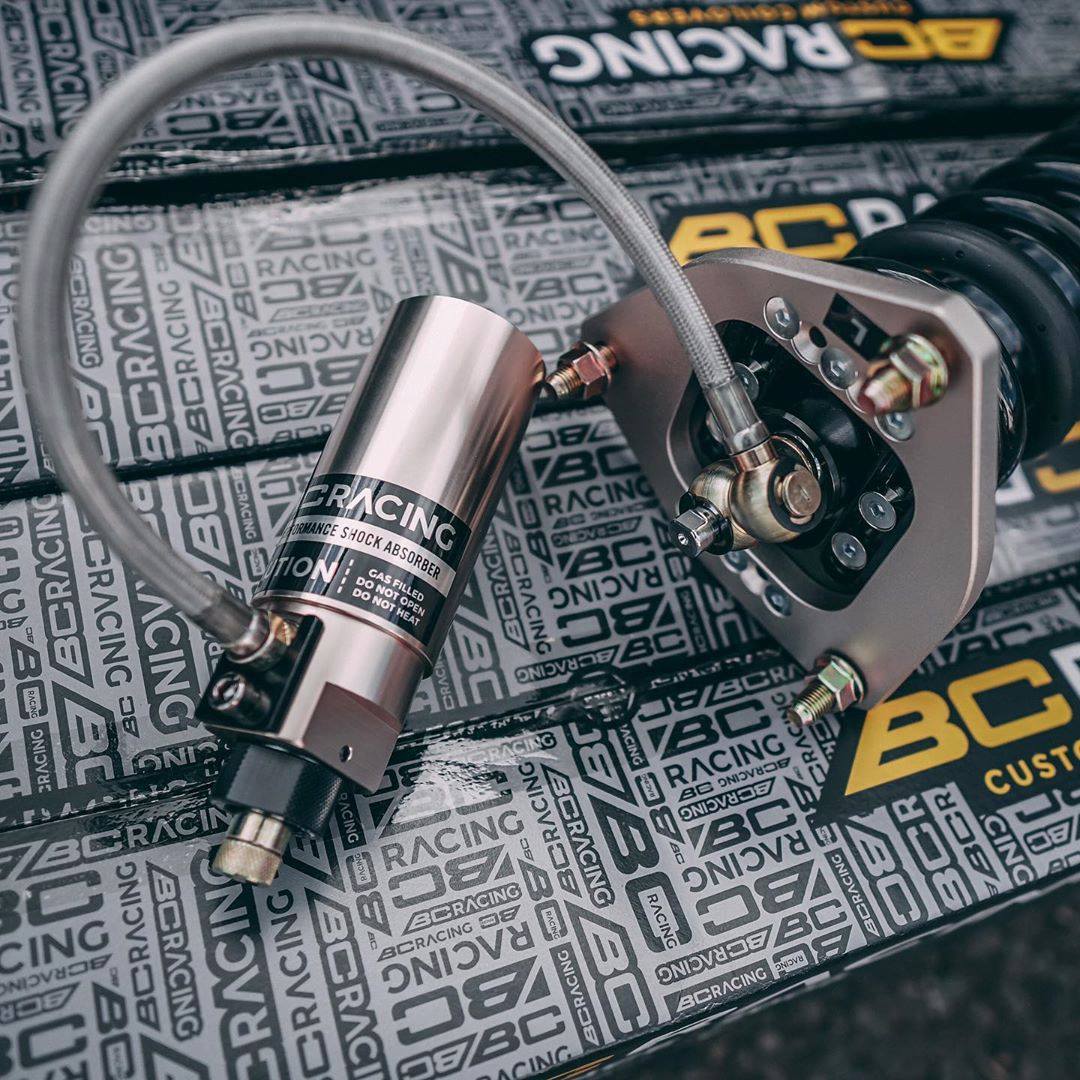

      ZR Series
         Honda Civic EK/EM (Rear Fork) (96-00) 14/10KG.mm





         ZR Series bring a 3-way adjustable track ready coilover
         system to racers from novice to pro for a price not seen
         before in the performance suspension market. Each ZR
         Series Coilover system offers independent low speed and
         high speed compression adjustment and separate rebound
         adjustment. They also offer full height adjustability
         independent of piston travel and spring preload.


         Find out more about ZR Series Coilovers HERE

         Direct Link to Michael's ZR Series Coilovers HERE



ENGINE


B16A CSS block
Manley rods
Nippon pistons
ARP head studs
Mike Andrew Racing modified Moroso baffled sump
Wanga Head gasket
King racing bearings
B16B type R head
Skunk2 Pro XP valve springs
Skunk2 titanium retainers
Skunk2 Ultra valves
Skunk2 Tuner 1 cams
Skunk2 lost motions
AEM cam gears
Mocal oil cooler
Speed factory 4bar map sensor
ID 1000cc injectors
AEM fuel pump
AEM fuel rail
AEM fuel pressure regulator
K&N fuel filter
Mike Andrew Racing modified cam cover breather
Mike Andrew Racing custom fuel lines
Mike Andrew Racing Catch can
Mike Andrew Racing custom radiator
Pacet fan
Elite Racing components Titanium studs intake and exhaust
Elite Racing components billet P/S bracket
Billet Engine mounts
Nolodgy Hot wire HT leads
Accel super coil


TURBO KIT


Schubandautoworks Manifold with billet collector
Mike Andrew Racing screamer pipe
Mike Andrew Racing mid exit exhaust
Precision 5858 Ball bearing turbo
Precision 46mm wastegate
Mike Andrew Racing custom Intercooler
Elite Racing components HD clamps



DRIVETRAIN


S4C LSD gearbox
M factory carbon synchros
Insane shafts
Action clutch
RPC flywheel
Hel braided clutch line


SUSPENSION


BC racing ZR Series 3 way coilovers
Hardrace front and rear camber arms
Hardrace ball joints
Hardrace Poly bushed front wishbones
Hardrace rear toe adjusters
Hardrace LCAs
Hardrace Track rod ends
Hardrace ARB drop links
Mike Andrew Racing rear brace
Ultra racing 3 point strut brace
Solid steeering rack bushe



  1.
  2. BRAKES


    KSport 8 pot front callipers
    KSport 330mm disc
    PBS pads
    Honed Developments booster delete
    Mike Andrew Racing brake stopper
    New stock rear callipers
    PBS pads
    Hel braided lines


    WHEELS / TYRES


    Dry setup


    Japan Racing 17 x 9.5 Front wheels
    Bola 17 x 8 Rear wheels
    Nankang AR1 tyres

    245/40/17 Front

    235/40/17 Rear


    Wet setup


    Japan Racing 17 x 8.5 Front wheels
    Japan Racing 17 x 7.5 Rear wheels
    Michelin PS4 tyres
    245/40/17 Front
    225/45/17 Rear


    ELECTRONICS


    Hondata S300 v2

    AEM Wideband
    Stack oil pressure
    Stack oil temp
    Apexi AVCR boost controller
    Power lite battery
    Mike Andrew Racing custom battery tray



  3.
  4. INTERIOR


    Sparco bucket seats
    Luke harnesses
    Mike Andrew Racing Harness bar
    Sparco steering wheel


    AERO


    Mike Andrew Racing front splitter/diffuser
    Mike Andrew Racing custom side skirts
    Mike Andrew Racing modified carbon bonnet
    Tracklife composite fender cutout
    BYC Rear win
